Next Dimension Signature casement windows.
The Versatility of Vinyl
Convenience meets dependability with Next Dimension windows and doors from Windsor. Advanced vinyl technology ensures easy operation, superior energy efficiency, low maintenance and high performance. And, with several hardware and finish options available, our Next Dimension line offers a vinyl solution for any application. Our products are built with vinyl extrusions that ensure superior weathering, durability and color retention. We also use Edgetech Super Spacer technology and Cardinal LoE 366 glass, which provides a glazing system that’s top-of-the line in terms of energy efficiency.
See What Sets Next Dimension Apart

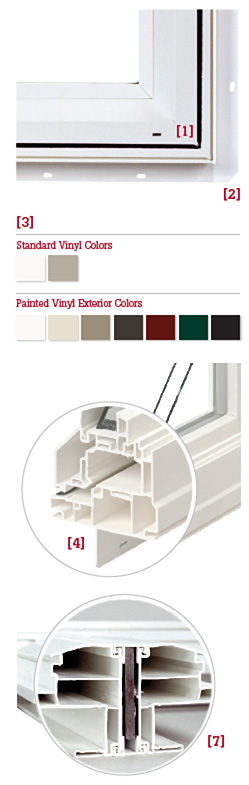

[1] Positive Pressure Drainage System
Excessive rain and condensation concerns are alleviated by our drainage system, which prevents build ups by directing water away toward the exterior.
[2] Nail Fin
Easier installation is achieved through the use of an extruded, rigid, pre-punched nail fin surrounding the perimeter of the frame. And, the integrated nail fin provides increased strength and resilience.
[3] Exterior Color Options
Next Dimension lets the true color shine through with vinyl that is guaranteed never to fade, peel or chip. Standard extrusion colors include white and clay, while optional exterior finishes are available in white, ivory, tan, bronze, cinnamon, hunter green and black. And, our white finish color never varies; white is truly white. Note: White signature products with black exterior will be laminated, starting summer 2023.
[4] Multi-Chambered Extrusion
Thick, multi-chambered extrusions add strength and decrease air infiltration while allowing for seasonal expansion and contraction.
[5] Testing to Meet Six Industry Standards
We test all Next Dimension products to the strict standards set by AAMA/WDMA/CSA/101/I.S.2/A440-11 for air, water and structural performance. Our vinyl extrusions are AAMA certified on an on-going basis.
[6] Eight Additional Quality Tests
We take quality control even further by putting the material through eight additional tests for durability and quality construction.
[7] Reinforcement Bars for Added Strength
For added safety in certain large window applications, we use galvanized steel reinforcement bars to bolster strength.
-
ENERGY STAR Partner
Windsor Windows & Doors is proud to be an ENERGY STAR® partner. Look for the ENERGY STAR® logo on our products, which means those models meet EPA guidelines for energy efficiency.
-
State-of-the-Art Lisec® Glass Fabrication Equipment
Our highly-automated glass line requires no manual manipulation – dramatically reducing seal failures caused by human contact with the glass – while our robotic equipment provides an incredible level of accuracy for a fast and efficient material flow.
-
Super Spacer Technology
Super Spacer dual-seal moisture barrier technology provides one of the most thermally efficient spacers in the marketplace, meeting or exceeding ENERGY STAR guidelines in all zones. All-foam Super Spacer reduces heat and cold conduction, which results in more comfortable living for homeowners and fewer callbacks for builders.
-
Cardinal LoE 366 Glass
Windsor products feature LoE 366 glass with a coating that alters the way glass transmits visible and invisible light. LoE 366 decreases heat loss in the winter and heat gain in the summer. Reduced ultraviolet light penetration also helps prevent your furniture, drapes and carpet from fading.
If you’re searching for Dual Low-E and tempered insulated glass, look no further than Windsor. Combining Cardinal LoE 366 soft coating with Cardinal i89 LoE, the Dual Low-E glazing option creates clear, insulated glass with superior performance.
